Static Mixing Nozzle A System

The Static Mixing Nozzle A System is a disposable plastic static mixer designed to mix two-component adhesives and sealants through internal mixing elements before dispensing.

PREV：No previous article NEXT：Static Mixing Nozzle B System

Product Parameters
Core Advantages
Application Scenarios
OEM / ODM Services
FAQs

Item NO.	Item Name	Inner Diameter ID (mm)	Outer Diameter OD (mm)	Elements	Outlet ID	Total Length (mm)	Material	Color
VA-03-08S	3.0-8 Bayonet Tapered tip	3	4.6	8	1	36	PP+POM	White
VA-03-17S	3.0-17 Bayonet Tapered tip	3	4.6	17	1	63	PP+POM	White
VA-54-17T	5.4-17 Bayonet Stepped tip	5.4	7.6	17	1.5	103	PP+POM	White
VA-63-20S	6.3-20S Bayonet Tapered tip	6.3	8.7	20	1.5	146	PP+POM	White
VA-63-20L	6.3-20L Bayonet Luer Lock tip	6.3	8.7	20	1.5	148.9	PP+POM	White
VA-63-21S	6.3-21S Bayonet Tapered tip	6.3	8.7	21	1.5	153	PP+POM	White
VA-63-21L	6.3-21L Bayonet Luer Lock tip	6.3	13.2	21	1.5	153	PP+POM	White
VAQ-06-16L	6-16 Square Luer Lock tip	5.3	7	16	2	83	PP+POM	Green
VAQ-06-24L	6-24 Square Luer Lock tip	5.3	7	24	2	115	PP+POM	Green

Item	Value
Product Name	Static Mixing Nozzle A System
Material	PP + POM
MOQ	500 pcs
Lead Time	1–3 days
Samples	Available

Consistent Mixing Performance

The internal mixing elements repeatedly split and recombine two-component materials as they pass through the Static Mixing Nozzle, helping achieve consistent mixing before application.

Multiple Specifications for Different Applications

The range includes 8, 16, 17, 20, 21, and 24 mixing elements, with total lengths from 36 mm to 153 mm. These options allow buyers to select suitable Static Mixers according to material viscosity, dispensing requirements, and application conditions.

Multiple Connection and Outlet Designs

Bayonet and square Luer Lock configurations are available, along with tapered, stepped, and Luer Lock outlet designs. Buyers can select a compatible Static Mixing Nozzle based on their cartridge connector and dispensing equipment.

Disposable Design for Easier Maintenance

These plastic Static Mixers are designed for single use, helping reduce cleaning work and the risk of residual material contaminating subsequent applications. Material compatibility should be confirmed before use.

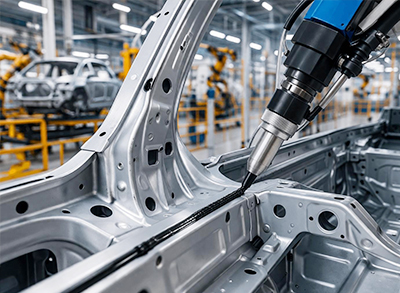

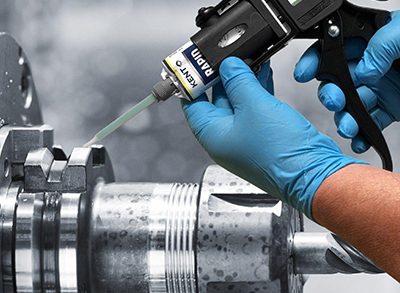

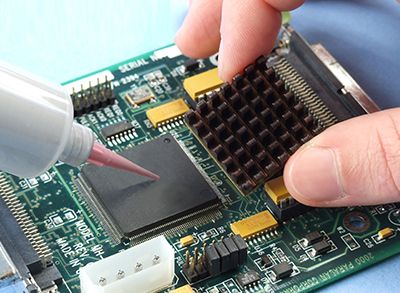

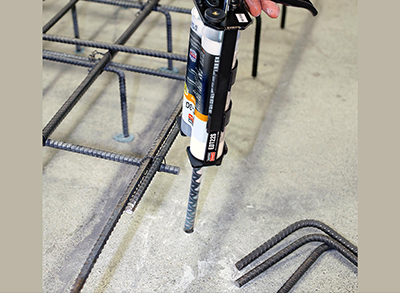

Industrial Adhesives For dispensing compatible two-component epoxy, polyurethane, and other industrial adhesives used in bonding and assembly.	Automotive Assembly and Repair Suitable for compatible two-component adhesive applications in automotive component bonding, maintenance, and repair.	Construction and Structural Bonding Used with compatible structural adhesives and sealants for construction, installation, and bonding tasks.	Electronics Potting and Precision Assembly Suitable for selected two-component dispensing processes in electronics assembly and potting, subject to material and equipment compatibility.


Product Configuration We offer multiple Static Mixing Nozzle configurations and can discuss dimensions, connection types, outlet designs, and mixing element counts according to project requirements.	Customization Options OEM/ODM requests may include product dimensions, connection structures, colors, packaging, and branding, subject to design feasibility.	Factory Supply and Samples As a manufacturer, we support bulk purchasing with an MOQ of 500 pieces, a stated shipping lead time of 1–3 days, and samples for compatibility evaluation.

FAQ

1. What is the Static Mixing Nozzle A System used for?

The Static Mixing Nozzle A System mixes two-component adhesives and sealants as they pass through internal mixing elements. It is designed for compatible cartridge systems and dispensing equipment.

2. Which connector types and mixing element configurations are available?

Available connector types include bayonet and square Luer Lock. Depending on the model, the Static Mixers have 8, 16, 17, 20, 21, or 24 mixing elements, with tapered, stepped, or Luer Lock outlet designs.

3. What is the minimum order quantity?

The MOQ is 500 pieces.

4. What is the shipping lead time?

The stated shipping lead time is 1–3 days. Please confirm the schedule based on the selected model, order quantity, and current production arrangements.

5. Are samples available before bulk purchasing?

Yes. Samples are available to help buyers evaluate product fit and compatibility with their cartridges, materials, and dispensing equipment.

Recommended Products

Customized to Your Specifications

We not only offer standard products but also possess strong OEM/ODM and engineering customization capabilities. Customers can provide:
● Product drawings
● Physical samples
● Equipment model
● Adhesive type
● Mixing ratio
● Capacity requirements
● Interface dimensions
Our engineering team can assist in product selection and structural matching based on actual applications. This allows us to help customers reduce procurement risks caused by size mismatches, interface incompatibility, insufficient mixing effects, or poor user experience.
