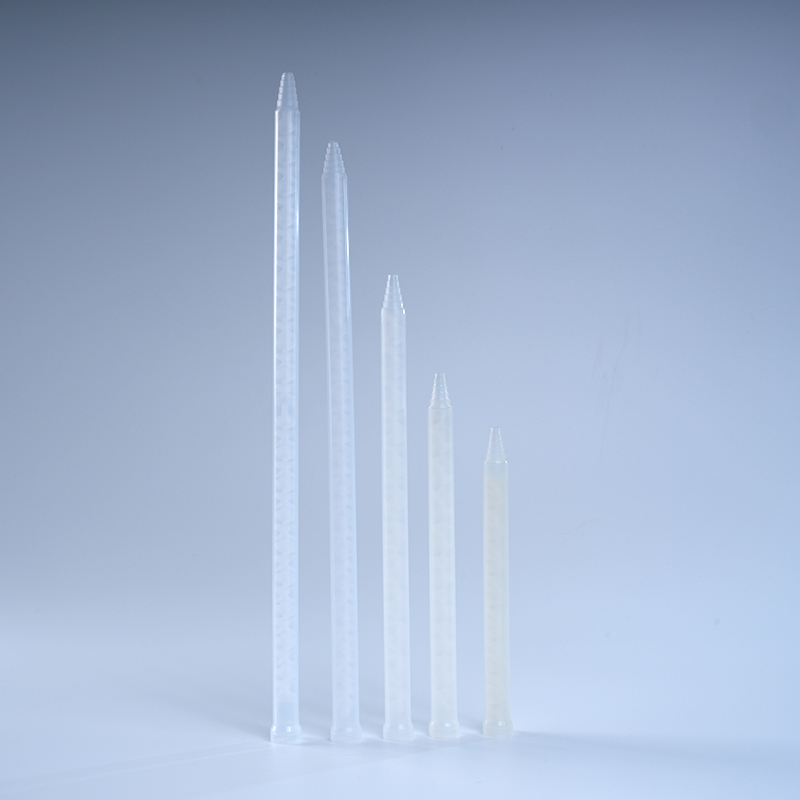

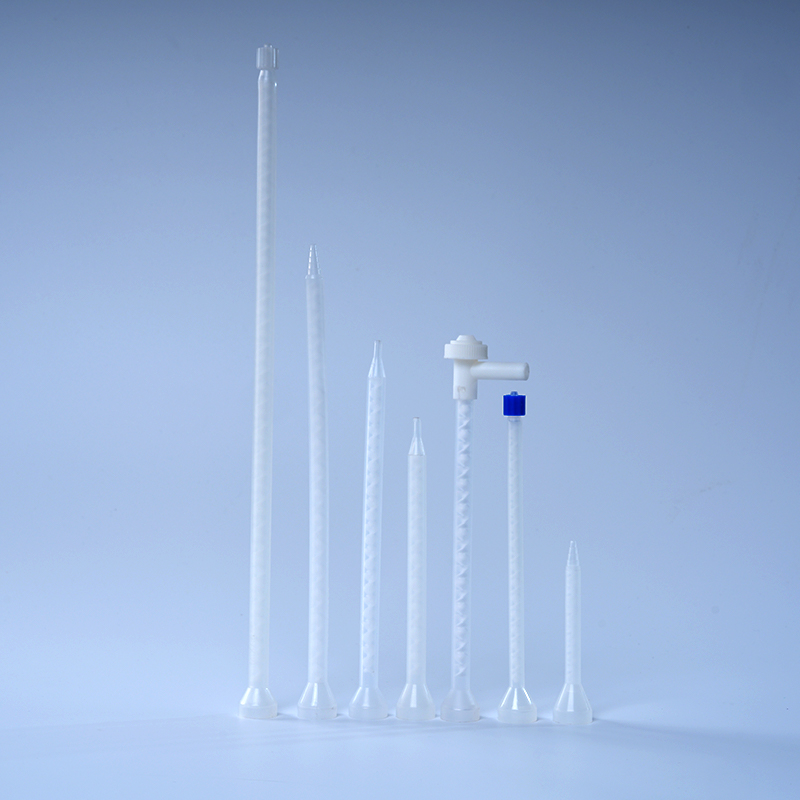

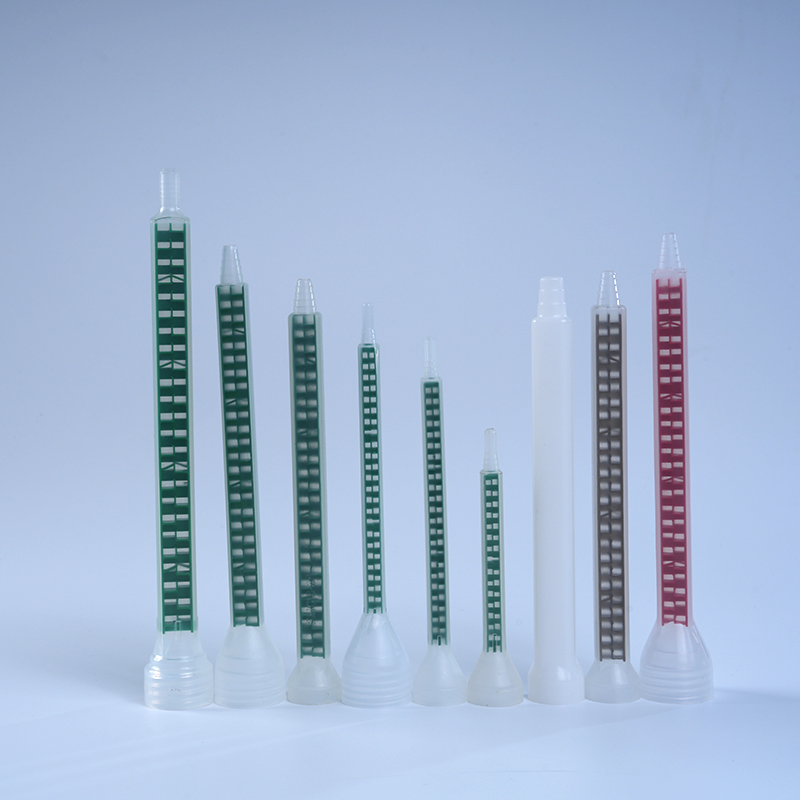

Static Mixing Nozzle C System

The Static Mixing Nozzle C System is a disposable PP+POM static mixer designed for mixing two-component adhesives and sealants, with multiple nozzle lengths, diameters, and outlet configurations for compatible C System dispensing cartridges.

PREV：Static Mixing Nozzle B System NEXT：Static Mixing Nozzle F System

Product Parameters
Core Advantages
Application Scenarios
OEM / ODM Services
FAQs

Item NO.	Item Name	Description	OD (mm)	L (mm)	VOL (ml)	Color	Material
VC-05-18T	C-5-18	Mixer helix, 1:1/2:1 stepped tip	8	121	2.1	White	PP+POM
VC-05-12T	C-5-12	Mixer helix, 1:1/2:1 stepped tip	7.8	90	2.1	White	PP+POM
VC-05-24T	C-5-24	Mixer helix, 1:1/2:1 stepped tip	8	149	2.3	White	PP+POM
VC-05-32T	C-5-32	Mixer helix, 1:1/2:1 stepped tip	8	188	2.8	White	PP+POM
VC-06-18T	C-6-18	Mixer helix, 1:1/2:1 stepped tip	10	149	3.6	White	PP+POM
VC-06-24L	C-6-24L	Mixer helix, 1:1/2:1 Luer Lock Tip	10	185	4.2	White	PP+POM
VC-06-32T	C-6-32	Mixer helix, 1:1/2:1 stepped tip	10	234.5	1.9	White/Yellow	PP+POM
VC-8-18T	C-8-18	Mixer helix, 1:1/2:1 stepped tip	12	178	6.7	White	PP+POM
VC-8-24T	C-8-24	Mixer helix, 1:1/2:1 stepped tip	12	223	8.6	White/Yellow/Blue	PP+POM
VC-8-32T	C-8-32	Mixer helix, 1:1/2:1 stepped tip	12	287	11.8	White/Yellow/Blue	PP+POM
VC-10-18T	C-10-18	Mixer helix, 1:1/2:1 stepped tip	14	214	5.7	White/Yellow/Blue	PP+POM
VC-10-18S	C-10-18	Mixer helix, 1:1/2:1 Tapered Tip	14	230		Red	PP+POM
VC-10-24T	C-10-24	Mixer helix, 1:1/2:1 stepped tip	14	276	15	White/Yellow/Blue	PP+POM
VC-10-32T	C-10-32	Mixer helix, 1:1/2:1 stepped tip	14	352	21.5	White/Yellow/Blue	PP+POM
VC-13-18T	C-13-18	Mixer helix, 1:1/2:1 stepped tip	17	229	~	White/Yellow/Blue	PP+POM
VC-13-24T	C-13-24	Mixer helix, 1:1/2:1 stepped tip	17	293.5	27.5	White/Yellow/Blue	PP+POM
VC-13-32T	C-13-32	Mixer helix, 1:1/2:1 stepped tip	17	379	35.6	White/Yellow/Blue	PP+POM
VCQ-06-24L	F-6-24	Square Thread Connect Luer Lock Tip	5.3	127	2.9	Green/Orange	PP+POM
VCQ-06-24T	F-6-24L	Square Thread Connect Stepped Tip	5.3	130	3	Green/Orange	PP+POM
VCQ-08-24T	F-8-24	Square Thread Connect Luer Lock Tip	8.7	147	8.3	Green/Orange	PP+POM
VCQ-08-24T	F-8-24L	Square Thread Connect Stepped Tip	8.7	161	8.3	Green/Orange	PP+POM
VCQ-08-32T	F-8-32	Square Thread Connect Stepped Tip	8.7	178	10.37	Green/Orange	PP+POM
VCQ-10-19T	F-10-19	Square Thread Connect Stepped Tip	14.4	148	~	White	PP+POM
VC-93-12	9.3-12	Overlapping Mixing	12.7	163	~	White&Yellow	PP+POM
VC-93-14	9.3-14	Overlapping Mixing	12.7	176	~	Yellow&Blue	PP+POM
VC-93-16	9.3-16	Overlapping Mixing	12.7	185	~	Blue&Red	PP+POM
VC-93-20	9.3-20	Overlapping Mixing	12.7	217	~	Blue&White	PP+POM

Item	Value
Product Name	Static Mixing Nozzle C System
Material	PP + POM
MOQ	500 pcs
Lead Time	1–3 days
Samples	Available

Consistent Two-Component Mixing

Internal mixing elements repeatedly split and recombine two materials as they pass through the Static Mixing Nozzle, helping achieve consistent mixing before dispensing.

Multiple Sizes for Different Dispensing Requirements

The range includes nozzle lengths from 90 mm to 379 mm and outer diameters from 5.3 mm to 17 mm, depending on the model. These Static Mixers offer options for different material volumes and dispensing setups.

Multiple Tip and Connection Designs

Available configurations include stepped tips, tapered tips, Luer Lock tips, square-thread connections, and overlapping mixing designs. Buyers can select a suitable Static Mixing Nozzle based on cartridge compatibility and application needs.

Disposable PP + POM Construction

The PP+POM construction is designed for single-use dispensing applications, helping reduce cleaning work and residual-material contamination. Confirm chemical compatibility with the adhesive before use.


Industrial Adhesives Suitable for dispensing compatible two-component epoxy, polyurethane, and other industrial adhesives used in bonding and assembly.	Automotive Assembly and Repair Static Mixers can be used with compatible adhesive systems for automotive component bonding, assembly, and repair.	Construction and Structural Bonding Designed for selected two-component adhesive and sealant applications in construction, installation, and structural bonding.	Electronics Potting and Precision Assembly Suitable for compatible two-component materials used in electronics potting, component assembly, and precision bonding processes.


Product Configuration We offer multiple Static Mixing Nozzle configurations with different lengths, diameters, connection types, and outlet designs to meet varying dispensing requirements.	Customization Support OEM/ODM requests can include dimensions, connection structures, mixing element configurations, colors, packaging, and branding, subject to technical feasibility.	Factory Supply and Samples As a manufacturer, we support bulk orders with an MOQ of 500 pieces, a stated shipping lead time of 1–3 days, and samples for compatibility evaluation.

FAQ

1. What is the Static Mixing Nozzle C System used for?

The Static Mixing Nozzle C System mixes two-component adhesives and sealants through internal mixing elements before application. It is intended for compatible cartridge systems and dispensing equipment.

2. Which mixing ratios are supported by these Static Mixers?

The listed models are designed for 1:1 or 2:1 mixing ratios, depending on the configuration. Confirm the required ratio and cartridge compatibility before ordering.

3. What is the minimum order quantity?

The MOQ is 500 pieces.

4. What is the shipping lead time?

The stated shipping lead time is 1–3 days. Please confirm the schedule for the selected model and order quantity.

5. Can I request samples before placing a bulk order?

Yes. Samples are available to help evaluate fit and compatibility with your cartridge, adhesive, and dispensing equipment.

Recommended Products

Customized to Your Specifications

We not only offer standard products but also possess strong OEM/ODM and engineering customization capabilities. Customers can provide:
● Product drawings
● Physical samples
● Equipment model
● Adhesive type
● Mixing ratio
● Capacity requirements
● Interface dimensions
Our engineering team can assist in product selection and structural matching based on actual applications. This allows us to help customers reduce procurement risks caused by size mismatches, interface incompatibility, insufficient mixing effects, or poor user experience.
